Dongfeng Tianjin mass truck refrigeration service
Home > Products > Other Refrigeration Equipment & Parts > Dongfeng Tianjin mass truck refrigeration service

Dongfeng Tianjin mass truck refrigeration service

Dongfeng Tianjin mass truck refrigeration service

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: naked, waxing in bulk ship or Ro-ro shipment
    Productivity: 5000pieces/year
    Brand: JDF
    Transportation: Ocean,Land
    Place of Origin: Hubei, China (Mainland)
    Supply Ability: 200pieces/month
    Certificate: ISO, CCC, CE
    HS Code: 8705309000
    Port: Shanghai,Tianjin,Shenzhen

Basic Info

Emission Standard: Euro 2, Euro 3

Horsepower: <150hp, 150-250hp

Bearing Capacity: Large

Transmission Type: Manual

Car Type: Van

Certification: CE, RoHS, CCC, ISO9000

Fuel: Diesel

Engine Type: 4 Stroke

Payload: 50T

Condition: New

Air Conditiong: Equipped

Brake: Air Brake

Cabin: Straight Head ,single Row With Air Condition

Tire Numbers: 6

Max Speed (km/h): 90

Min. Temperature(°C): -18

Rating Mass(kg): 4155

Full Mass(kg): 16000

Outline Size(L×W×H) (mm): 8590X2490X2980

Horse Power(HP): 190

Displacement(ML): 5900

Product Name: Dongfeng Tianjin Mass Truck Refrigeration Service

Wheelbase(mm): 5000,4700

Product Description

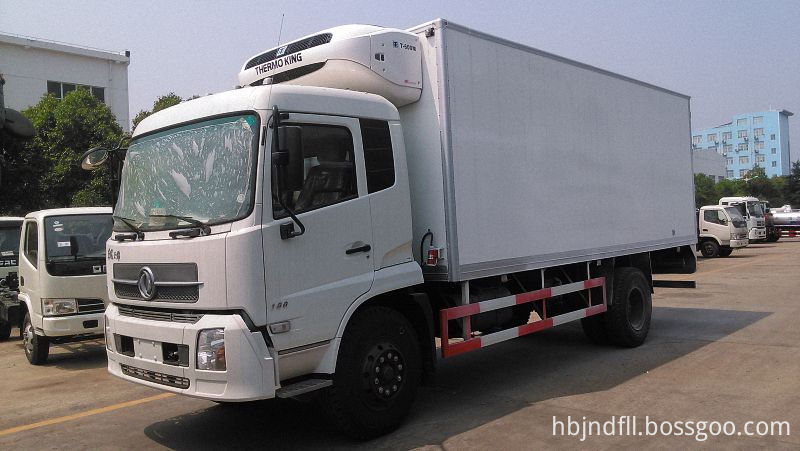

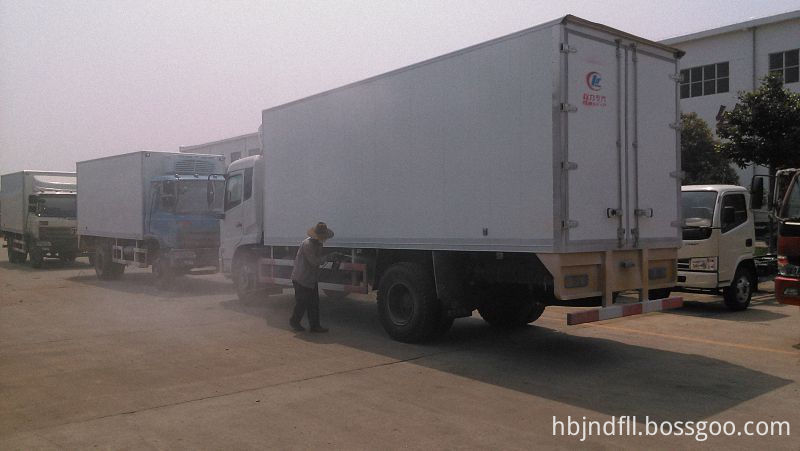

Dongfeng Tianjin refrigerated truck with meat hooks, adopts Dongfeng Tianjin original chassis, Euro 3 Cummins 190hp engine, dongfeng 6 speed transmission, 5ton front bridge/10ton rear bridge, 10.00-20 nylon tyre, with air-conditioner, 4700mm wheelbase,etc.

The volume of the refrigerated truck is 30cbm, and the insulation body dimension (L*W*H) is 6200*2200*2200(mm), the interior and exterior with glass steel, and the insulation with strength, with 150 sets meat hooks, etc.

The cooling units adopts USA THERMO KING independent cooling unit. And the temperature of the reefer van can reach 20 degree below zero, etc. and adjusted temperature at the driver cab.
Refrigerated Truck 72
Dongfeng Tianjin reefer van truck with meat hooks
Total mass(kg) 16000 Curb mass(kg) 11650
Rated mass(kg) 4155 Chassis model DFL1160BX
Driver cab person 3 Max speed(km/h) 90
Approach/departure angle(°) 20/15 Front/rear suspension 1430/2160
Overall dimension(mm) 8590X2490X2980 Cargo body dimension(mm) XX
Axles 2 Axle load(kg) 6000/10000
Tyre 9.00-20,9.00R20,10.00-20,10.00R20,275/80R22.5 Tyre nos. 6
Front tread(mm) 1880,1920,1940 Rear tread(mm) 1800,1860
Wheelbase(mm) 5000,4700 7/9+6,8/10+8
Emission standard GB3847-2005,GB17691-2005 Euro Ⅲ Fuel type Diesel
Engine model Manufacturer Displacement Power
B190 33
Dongfeng Cummins 5900
140
Refrigerated Truck 70


A refrigerator truck is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.


The refrigerator truck is a sealed container truck whose tank body is made of sealed plates which is composed of plastic composite board, glass epoxy, and polyurethane foam heat-protection materials. It can transport frozen food, dairy products, fresh vegetables and fruits, or vaccine medicines.

Applications of Refrigerator Truck
The refrigerator truck is a sealed container truck whose tank body is made of sealed plates which is composed of plastic composite board, glass epoxy, and polyurethane foam heat-protection materials. It can transport frozen food, dairy products, fresh vegetables and fruits, or vaccine medicines.

Features of Refrigerator Truck
1. The chassis is manufactured by some domestic famous companies, such as China Dongfeng Automobile Company, China Dongfeng Motor Limited Company, China Dongfeng Automobile Limited Liability Company, FAW Jiefang, Sino Truck, Beiqi Foton Motor, Hualing Heavy-duty Truck, Northern Benz, Shaanxi Automobile, Jianghuai Automobile, and Jiangling Motors.
2. The refrigerator truck is mainly composed of heat protection container, refrigerating unit, and temperature recorder. Among them, heat protection container and refrigerating unit can be customized.
3. Meet hook, ventilation slot, and other parts are available upon request.



Truck supplier introduction


Truck customers


We can produce 300kinds of different special vehicals for customers:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck,sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Certificate Of Our Truck

Faq Of Our Trucks

  • 1
  • 2
  • 3
  • 4
  • 5
 Established in 1995, Hubei Jiangnan Special Automobile Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of Special Automobiles. We are located in Suizhou City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.

Covering an area of 150000 square meters, we now have over 1000 employees and an annual sales figure that exceeds USD100 Million. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001, CCC and Government High Technology Enterprises certificates.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Southeast Asia, South America, Southeast Asia, Africa, Oceania, the Middle East and Eastern Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Company Info
  • Company Name: Hubei Jiangnan Special Automobile Co. Ltd.
  • Representative: Ganzi Lin
  • Product/Service: Fire Truck , Aerial Platform Truck , Road Sweeper , Garbage Truck , Water Truck , Wrecker Truck
  • Capital (Million US $): US$10 Million
  • Year Established: 1995
  • Total Annual Sales Volume (Million US $): Above US$100 Million
  • Export Percentage: 51% - 60%
  • Total Annual Purchase Volume (Million US $): Below US$1 Million
  • No. of Production Lines: Above 10
  • No. of R&D Staff: 51 -60 People
  • No. of QC Staff: 51 -60 People
  • OEM Services Provided: yes
  • Factory Size (Sq.meters): Above 100,000 square meters
  • Factory Location: NO.1 Xingguang Industrial Park, North Outskirt, Suizhou, Hubei, China
  • Contact Person: Mr. Mike Chan
  • Tel: 86-722-3333812
